My Turbo Install Thread
- Thread starter Hugger Z
- Start date
Hugger Z
Official Motown Events Director
Last night was some more bad news and some good news. Plumbed up my compressor and plugged it in and it stopped after 3 minutes..... DOH! Something is not right there and I need that monster for my valvespring swap and other cutting tools......
issed:

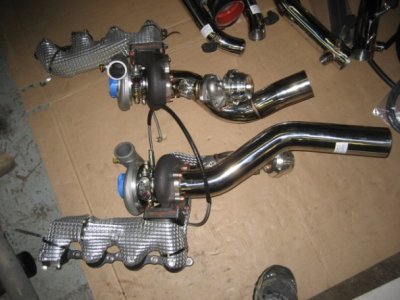

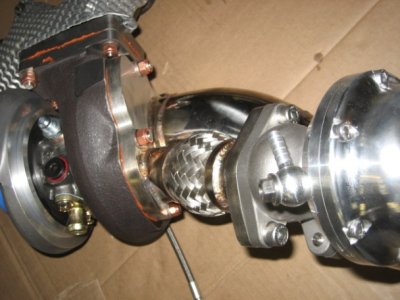

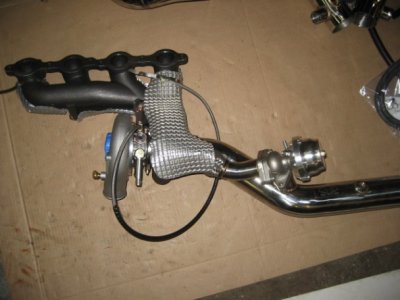

On a good note, got the exhaust manifolds, turbo's, and downpipes subassembled. Also put on the oil lines for the turbo's and added the starter heat shield to the RH side Assy.:rockwoot:
Learned a valuable lesson too. There were 2 different length studs provided that only varied by 2mm. Pay CLOSE attention to the stud lengths as I had to go back and find a few that got mixed into my turbo & manifolds subassemblies. I needed the longer ones for the manifolds to the engine. Slowed me down for a bit, but all straightened out now.
issed: On a good note, got the exhaust manifolds, turbo's, and downpipes subassembled. Also put on the oil lines for the turbo's and added the starter heat shield to the RH side Assy.:rockwoot:
Learned a valuable lesson too. There were 2 different length studs provided that only varied by 2mm. Pay CLOSE attention to the stud lengths as I had to go back and find a few that got mixed into my turbo & manifolds subassemblies. I needed the longer ones for the manifolds to the engine. Slowed me down for a bit, but all straightened out now.
Attachments
Last edited:
Stangdriver627
Forum Member
Looks great man, i kinda missed this thread, somehow haha but hopefully you can get it all buttoned up soon and on the road.
~Alex
~Alex
Slowmaro305
Forum Member
this is a great thread, looking good. Its always nice to see pictures throughout the build instead of just before and after. Keep up the good work.
Hugger Z
Official Motown Events Director

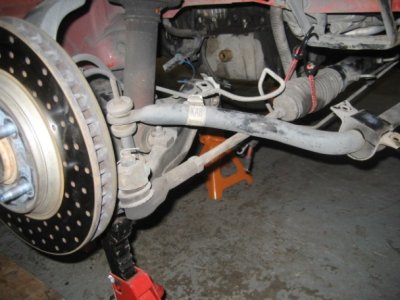

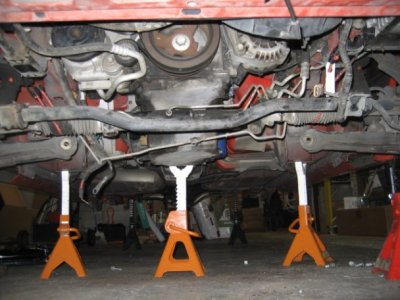

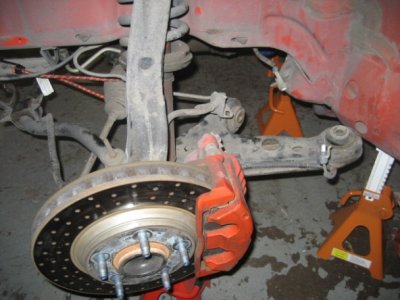

OK! Finally got one of the big items checked off of my list. I got the stock K-Member out all by myself last night! What a chore that was. Not too difficult overall but time consuming and tricky as the motor mounts got hung up on the motor so I ended up unbolting them from the k-member. I originally just unbolted the mounts from the block. I also had to wrestle the lower control arms out of the way as they were holding the stock K-member in place. And the steering rack bolts were tricky. I had to drop the K-member down to allow for those bolts to be taken out and then slide the rack forward and out of the K-member brackets. I already had the brake lines unbolted and nothing got hung up on me. All in all not too bad, and my neighbors probably think I am nuts after letting out a "Woohoo" when I finally got that thing dropped.

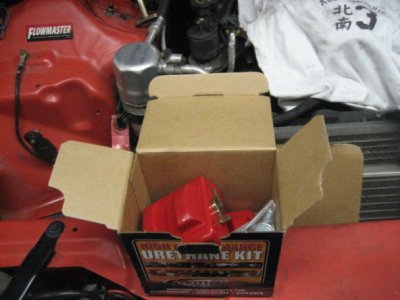

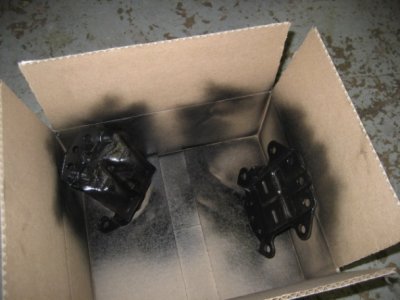

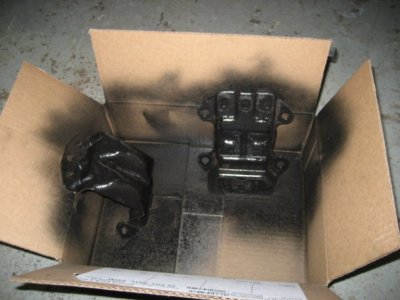

Also took the stock mounts apart in preparation for the urethane mounts. Cleaned them and put a coat of paint on them so they look nice. They were a bit rusty looking. Getting closer to hanging the turbo's!!!
:rockwoot:
And while I was pondering some of the K-Member fun, I also re-routed my hood latch release cable under the fender so it will be out of the engine bay. I forgot to get pics of that though.
Also took the stock mounts apart in preparation for the urethane mounts. Cleaned them and put a coat of paint on them so they look nice. They were a bit rusty looking. Getting closer to hanging the turbo's!!!
:rockwoot:And while I was pondering some of the K-Member fun, I also re-routed my hood latch release cable under the fender so it will be out of the engine bay. I forgot to get pics of that though.
Attachments
Last edited:
dirtybird
Club Member
He got new wheels and tires. Did you read the thread? :slap: :lol:
Stangdriver627
Forum Member
I'd guess it's because he's gotta drop the fuel tank, and now wheels gives more room.
~Alex
~Alex
Hugger Z
Official Motown Events Director
Believe me I wish I had a hoist. And SERIOUSLY considered just getting one. :lol:
Got a nail in the back tire the last day I drove it so they had to come off anyway. And yeah it is to drop the fuel tank.
What do you want me to do to your car? I am getting plenty of practice!
You are correct sir.
Thanks Matt! It is progressing, but not fast enough for me. I want it done! We'll see how far I get this weekend. I have no plans other than working on the car for 3 days!!!! Woohoo! OH, and there will be some time for my girl in there too....:naughty:
MotorCityNova572
Club Member
MotorCityNova572
Club Member
no...I seen his new girlfriend. it was like the week of the WDC i seen her. Very Beautiful
Hugger Z
Official Motown Events Director

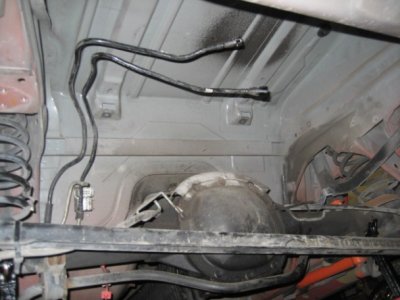

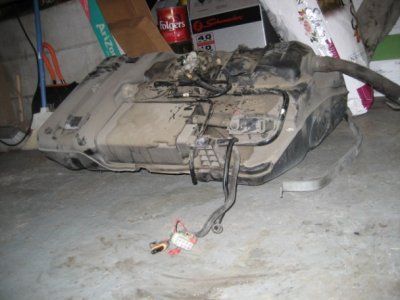

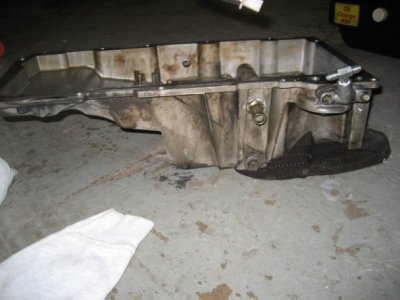

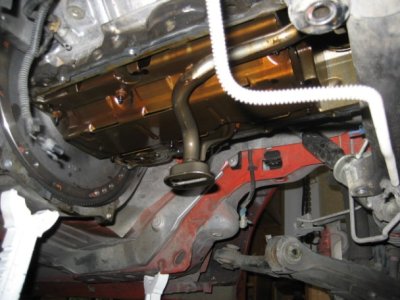

Made some good progress last night. Many thanks to James (n20junkie on LS1tech) who came down and assisted me. We dropped the oilpan and drilled and tapped the oil feed and drains. We also dropped the fuel tank so I can install my new pump. Prior to his arrival I re-assembled the motor mounts with the urethane inserts. They look nice now that I painted them! My new plug wires and plugs also arrived via UPS today. Woohoo! It's coming together! Should see lots of progress this weekend as I have nothing planned except for working on the car. Hoping to have it as close to complete as I can by Monday.
Anyone know of any muffler shops or other places that can bend up custom exhaust? I would like to run 3" duals (no mufflers for now) out the back of the car. Called a local shop I know but they were not too keen on making me a custom set-up. I don't want it all welded as I need to be able to drop my driveshaft and stuff to get the trans out (as I know there will probably be clutch issues next year). So I am looking for it to be clamped together or something along those lines. I am hoping to have the car done for a roadtrip in the middle of Sept and would like to have some exhaust so the trip is tolerable. :lol:
Anyone know of any muffler shops or other places that can bend up custom exhaust? I would like to run 3" duals (no mufflers for now) out the back of the car. Called a local shop I know but they were not too keen on making me a custom set-up. I don't want it all welded as I need to be able to drop my driveshaft and stuff to get the trans out (as I know there will probably be clutch issues next year). So I am looking for it to be clamped together or something along those lines. I am hoping to have the car done for a roadtrip in the middle of Sept and would like to have some exhaust so the trip is tolerable. :lol:
Attachments
Hugger Z
Official Motown Events Director
Why thank you Nick. I think she is pretty. And nice and tall! :naughty:
