Engine/ Engine bay shots

[1BADAIR]

Since when did carbs run a MAF, an IAC and a throttle body :dontknow:

Also I like Lokar dipstick for the trans :lol: :lol:

shhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh



[igotaneed4speed]

.

ignore my big ass head.

lol here's an old old pic..man i forgot how ugly that fucker was no wonder no one believed me its ran what it did



[JDP]

Since when did carbs run a MAF, an IAC and a throttle body :dontknow:

Also I like Lokar dipstick for the trans :lol: :lol:

i didnt say it was running a carb, its an intake meant for a carb with an elbow



[lucky7]

hmmmmm.

helpful, huh?



[orangejuiced86]

Old Car:

New Car:



[Detroit Style Dragger]

No visible wires please.



[LilJuicedCoupe]

Not to Hijack but along the same lines...anyone have pics of where you ran your fuel line from the engine bay?? in a fox Mustang that is



[Detroit Style Dragger]



[stangman377]

Not to Hijack but along the same lines...anyone have pics of where you ran your fuel line from the engine bay?? in a fox Mustang that is

Here's where I ran mine never a problem!



[cjmatt]

solenoids in the wheel wells and WOT switch on the gas pedal



[orangejuiced86]

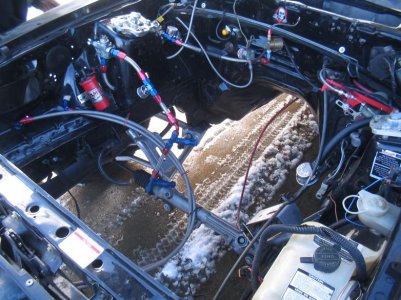

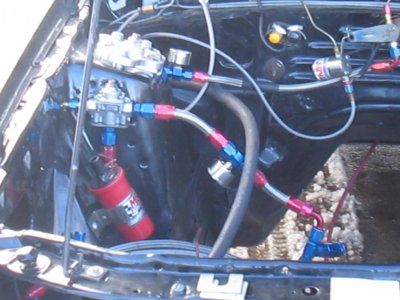

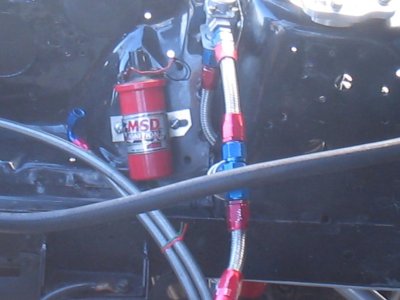

Fuel lines:



[quickstang1983]

.

ignore my big ass head.

lol here's an old old pic..man i forgot how ugly that fucker was no wonder no one believed me its ran what it did

LOL! I like the heat wrap on the fuel line. I put the same stuff on mine.



[stangman377]

Fuel lines:

That was where I originally ran the fuel lines then changed it up to keep the huge header tubes from boiling the lines.



[99slverZ]

Since when did carbs run a MAF, an IAC and a throttle body :dontknow:

Also I like Lokar dipstick for the trans :lol: :lol:

He didn't mean its carbed, he meant it has a "carb style" intake with a elbow on it to accept a throttle body. :thumbsup:



[orangejuiced86]

I had my motor regulator in the back corner. But the nitrous one was on the shock tower.



[chevelledave]

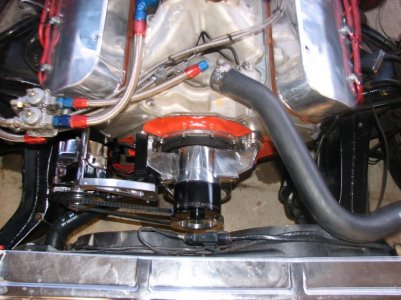

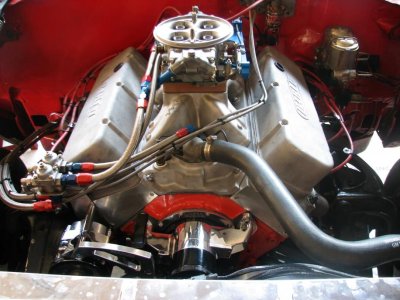

mine



[orangejuiced86]

Now I'm just bored. Shots from the past:

S-trim/302:

Nitrous/302:

N/A 408:



[P.F.M.]

Now I'm just bored. Shots from the past:

Wow Ryan why did you get rid of that setup? hell when did you have that setup?



[quickstang1983]

Wow Ryan why did you get rid of that setup? hell when did you have that setup?

x2!!! How did it run? Good I would imagine....



[11secSVT]

Mine and my bro-in-law (n/a and nitrous)
