Wire diagrams

Detroit Style Dragger

Detroit Style Dragger

Banned
Does anyone have some for the 87-89 Mustang GT. The ones in my Haynes suck. I'm looking for ones that show everything in relation to where they are in the car.

Or hell, anyone have a service manual .pdf for the car?

I'm also going to add what ever ones I run across as well. Some one else will need this at some point.

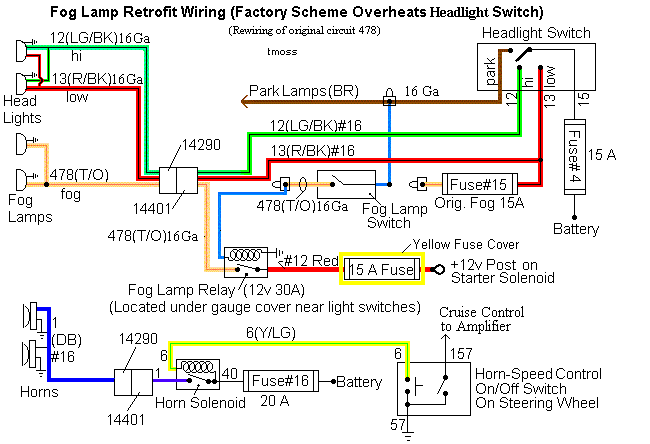

Fog light re wire

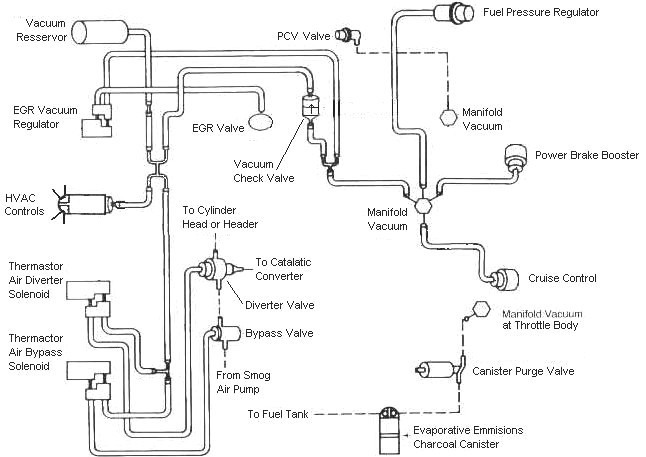

Vacuum

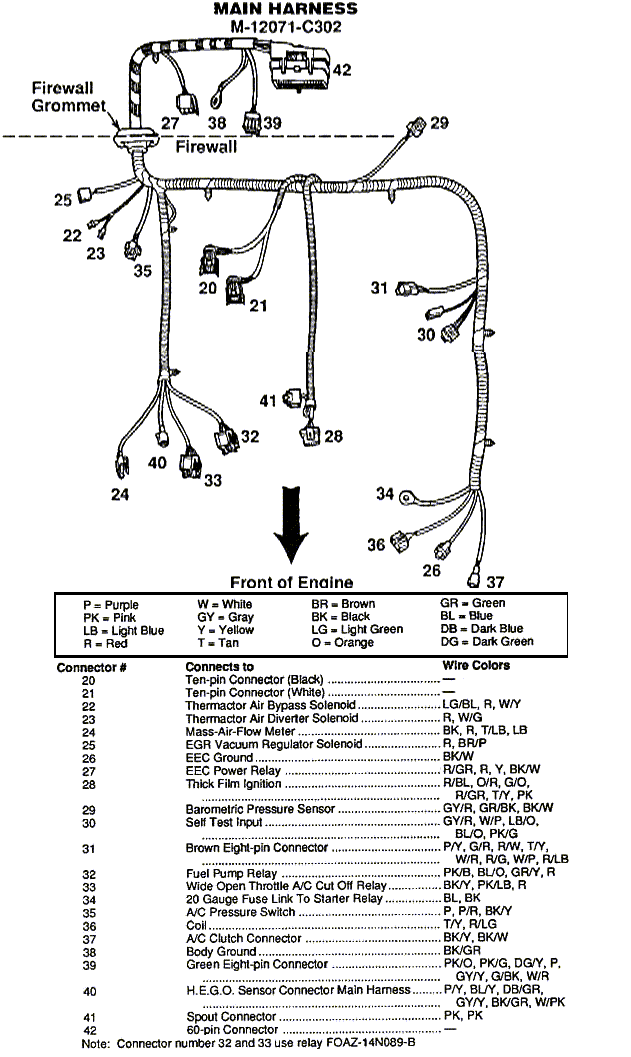

Main harness

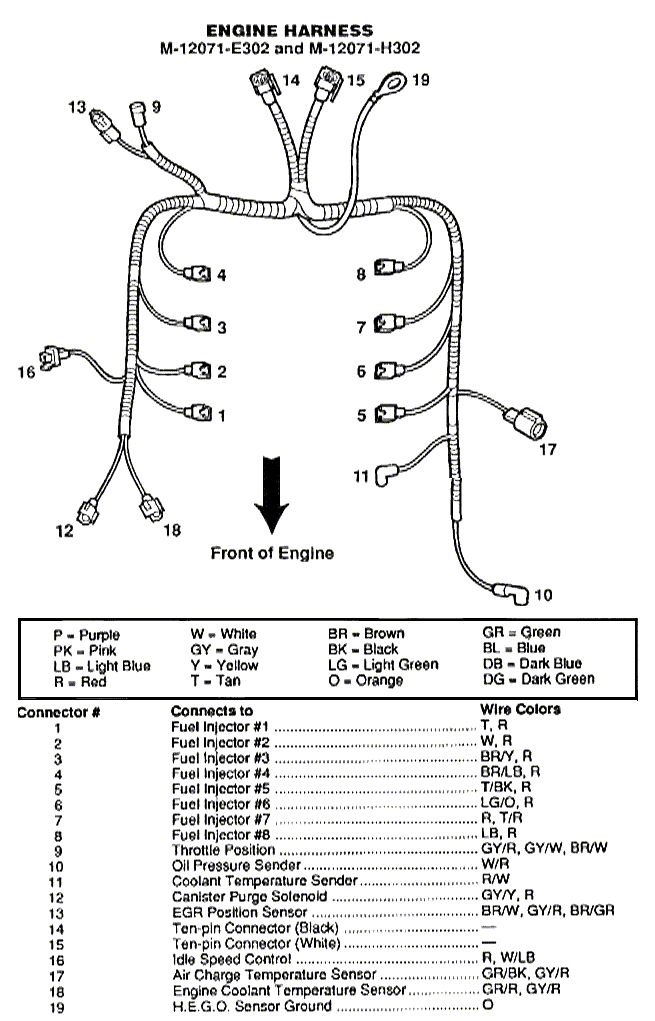

Injector harness

Last edited:
I have ford service wiringi and vacum diagrams..

There the big as ones the fold out like 36"x 20 prob.. you more than welcome to borrow it but you have to come get it and return it lol

my8950 said:
I've got an ETVM....I don't think that there is a manual that exists that is going to tell you where everything is exactly located...
What are you looking for, or looking to do? We can probably help better that way...
Click to expand...
The car has some quick fixes in the wiring. Wire added, and ran outside of the harnesses, new grounds made etc. Im looking to diagrams that show where things run in relation to the car. With the Honda I had, I had a full Helms service manual in a .pdf form. It would give diagrams of say the airbag harness/harnesses, show how they are ran through the car, and roughly, where the connections are. Must like the two engine harness diagrams I posted from that veryusefull.com site.
