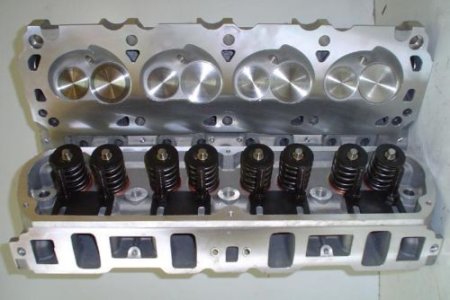

This is for a NEW (Pair / 2) set of FLO-TEK SB FORD 180CC Aluminum CYL Heads 58CC 1.94/1.54
Fit 289, 302, and 351W. 289 and 302 engines require the use of ARP head bolt kit 1543605, or a stepped washer kit. Head bolt holes are set up for 1/2" 351W style head bolts.
Comparable To The Ford Racing M-6049-X306 Cylinder Heads Sold By Summit Racing For $1369.98 A Set.
Manufactued by "Tri State Cylinder Heads"
This is for (2) cylinder heads
3/8'' screw in studs & guide plates included1.94" intake, 1.54"exhaust stainless swirl polished valves
180cc intake runners
58cc combustion chambers
Hi Performance springs (.550'' lift) Hydraulic Flat Tappet or Hydraulic Roller
PC seals
Hardened locks and retainers
High temp exhaust seats
Manganese bronze intake guides phosphor bronze exhaust guides
5 angle valve job
ASSEMBLED READY TO INSTALL
Installation Notes :
ARP head bolt kit 1543605
Head Gasket # M-6051-A50
Intake Gasket # M-9439-A50
Spark Plug Autolite 104 AGSF-32C
Stud Style rockers
Intake Test @ 28" of Water
.100 61.5 CFM
.200 124 CFM
.300 178 CFM
.400 209 CFM
.500 223 CFM
.600 248 CFM
Exhaust Test @ 28" of Water
.100 56.6 CFM
.200 98 CFM
.300 119 CFM
.400 137 CFM
.500 161 CFM
.600 191 CFM
IF INTERESTED $600 TO MM MEMBERS 810 931 0652
