Question for the SN-95 Guys

1nine84GT

1nine84GT

Forum Member
What Is the CCRM module and where does It go ? Will the car run with out It ? Is there a way to bypass It ? Thanks In advance.

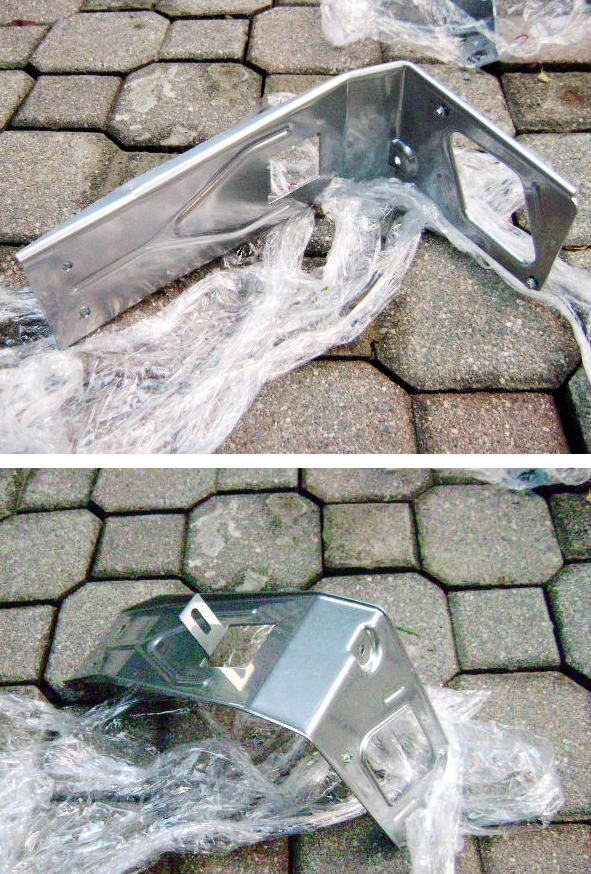

It stands for "constant control relay module", basically an all-in-one collection of relays and such. So unless you wire all that's contained inside of it elsewhere, or run a different computer, I'd imagine you can't get rid of it. It's located behind the radiator on this flat steel bracket:

It's up to you but I think I would just buy the module.
All of your relays are in that module. Fuel pump, fan, EEC.. If you are good with wiring yes it can me eliminated. I did so by using a fox engine harness on my car (that way I could run an A9L on my car) it was a pain in the ass and I've been playing with wires for about 23 years..

94 Drop said:
It's up to you but I think I would just buy the module.
All of your relays are in that module. Fuel pump, fan, EEC.. If you are good with wiring yes it can me eliminated. I did so by using a fox engine harness on my car (that way I could run an A9L on my car) it was a pain in the ass and I've been playing with wires for about 23 years..
Click to expand...

yup, FP, Fan, EEc, A/C
