Project boosted snake.

[BigWheelinBubba]

Cool project! :thumbsup:
Not a fan of the Weld wheels though. They stick out too far in the front. JMO



[MarkVIII93]

Cool project! :thumbsup:
Not a fan of the Weld wheels though. They stick out too far in the front. JMO

Lol. Yeah they're temporary. Depending on funds I may go with a low pad 17" weld rts or an alumastar 2.0.


Sent from my iPhone using Tapatalk



[MarkVIII93]

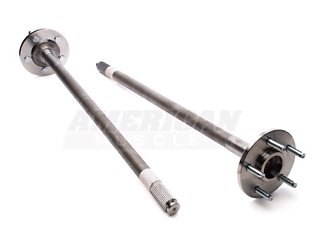

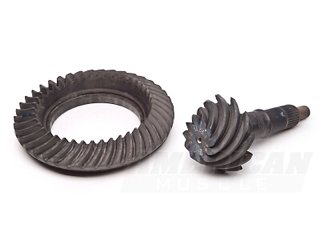

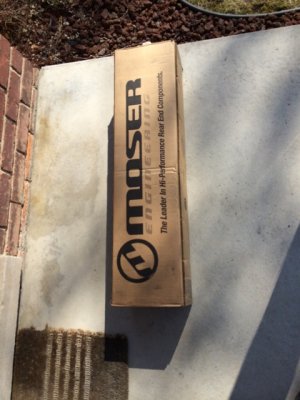

New gears and some moser 31 splines with an explorer trac lok carrier are next on the list.


Sent from my iPhone using Tapatalk



[MarkVIII93]

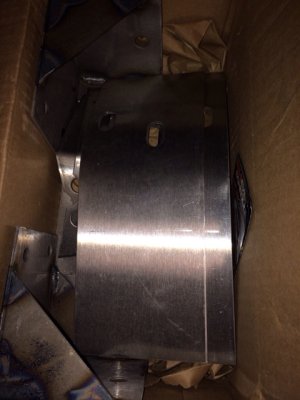

Battle boxes


Sent from my iPhone using Tapatalk



[MarkVIII93]

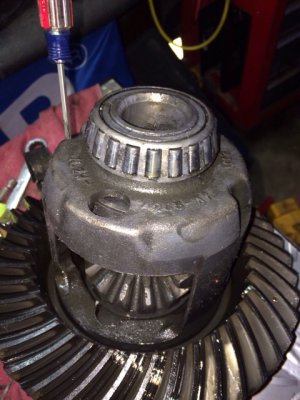

OE 31 spline ford traction lock. Soon to be fitted with carbon clutches


Sent from my iPhone using Tapatalk



[svtserpent]

Keep us posted on the battle box install, I need them and would like to see how it all goes.



[MarkVIII93]

Keep us posted on the battle box install, I need them and would like to see how it all goes.

I'll try my best to take pics as I go but I have a problem where I just have to continuously work until I'm done...


Sent from my iPhone using Tapatalk



[MarkVIII93]

BOOM


Sent from my iPhone using Tapatalk



[MarkVIII93]

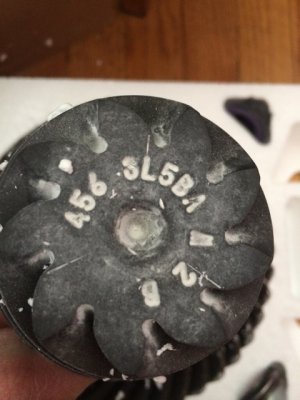

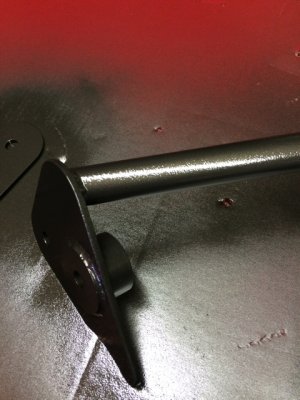

Gear came in and painted my relocating uppers.


Sent from my iPhone using Tapatalk



[MarkVIII93]

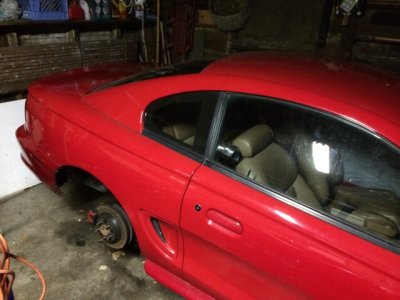

Began the axle and control arm removal for torque box install and new gears.

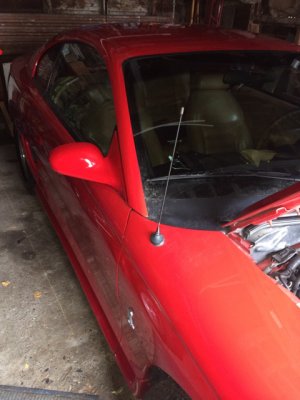

Also got bored and went to painters supply for some e8 to do the mirrors body match.


Sent from my iPhone using Tapatalk



[MarkVIII93]

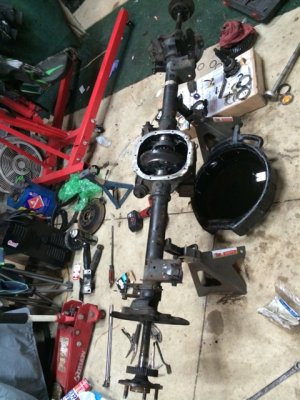

Axle is out.

Sent from my iPhone using Tapatalk



[MarkVIII93]

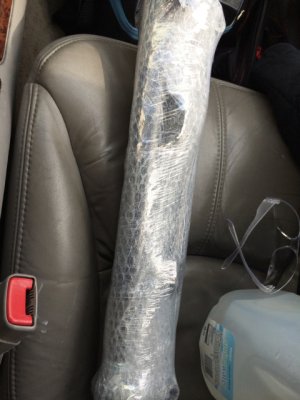

Took advantage of American muscles st pattys coupon and got 20$ off a ford racing driveshaft.


Sent from my iPhone using Tapatalk



[MarkVIII93]

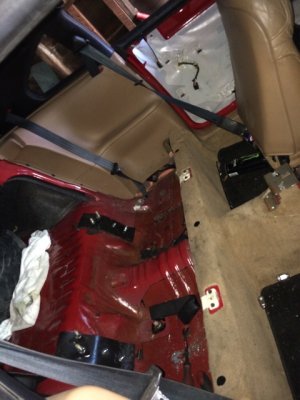

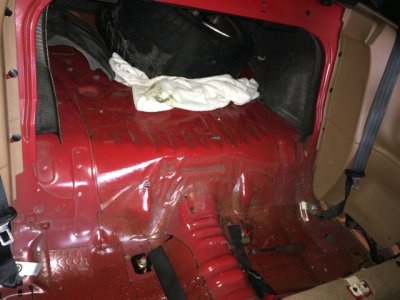

Upper boxes are in but not yet welded. If I could do anything different, I would invest in some nice drill bits and use an air drill. Took about an hour or two.


Sent from my iPhone using Tapatalk



[MarkVIII93]

Sent from my iPhone using Tapatalk



[MarkVIII93]

Sent from my iPhone using Tapatalk



[MarkVIII93]

Sent from my iPhone using Tapatalk



[svtserpent]

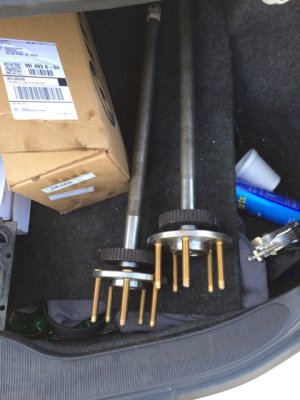

Did they come with the abs rings on them.



[MarkVIII93]

Did they come with the abs rings on them.

No. I pressed mine off and on to these.


Sent from my iPhone using Tapatalk



[MarkVIII93]

I'm very photogenic.


Sent from my iPhone using Tapatalk



[svtserpent]

Now the fun starts, setting the pinion angle......
